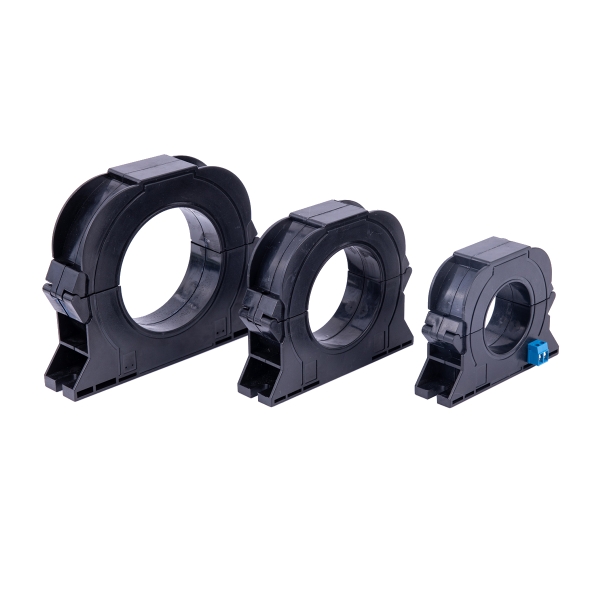

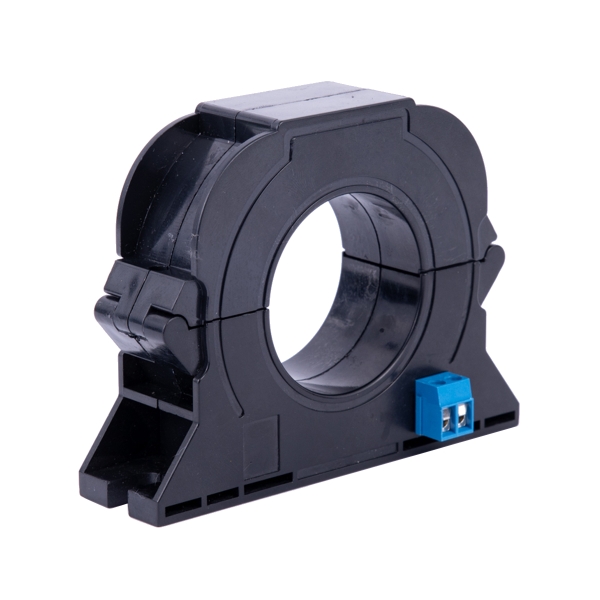

B series open and close residual current transformer, 90 degrees open and close freely, can be used outdoors. It can be quickly installed and disassembled in the state of no power failure and continuous line, and the operation is simple. This series of products has a variety of apertures corresponding to the cable specifications used in the main circuit to meet different use and installation needs. The use of high magnetic permeability magnetic core improves the response time of the transformer to residual current. The unbalanced current monitoring value is better than 5mA, which greatly reduces the false alarm and malfunction caused by the main circuit current magnetic field interference, which provides a sufficient guarantee for the reliability of the equipment.
Product Features

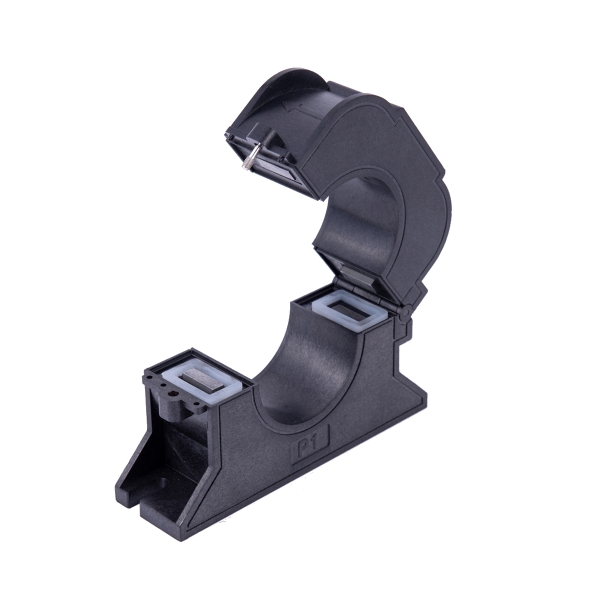

Split-core structure, easy to install on site and easy to operate;

The magnetic core winding structure is cast with epoxy resin, and the end faces of the incision are matched, and the stability is good;

Adopt high-permeability ultra-microcrystalline core, with good linearity and high sensitivity;

Scope of Application
Electrical fire monitoring system, fire-fighting equipment power monitoring system, rural power grid reconstruction project, intelligent power consumption system, low-current grounding system, electromagnetic relay protection, online environmental monitoring, etc.
PERFORMANCE
Electric
Performance
Parameters
Operating Temperature -40℃~+70℃ Relative Humidity ≤90%
Voltage Level 0.4/0.66/0.72KV Linear Range 5%~1000%
Rated Input Current 0~1A Rated Frequency 50/60Hz
Rated Output 0~0.25mA or 0~1V Power Frequency Withstand Voltage 3KV/min
Accuracy Class 0.5、1.0 Insulation Strenth 1000MΩ/500V/min
Mechanical
Structure
Parameters
Shell and Skeleton PBT/PC Flame Retardant Grade 94-V0 Output Method Sheathed Lines
Iron Core Material Nanocrystalline Split-core Structure “304”Fastening with inseparable screw
Sealing and Filling Epoxy Resin Construction Plan Base mounting screw fixing

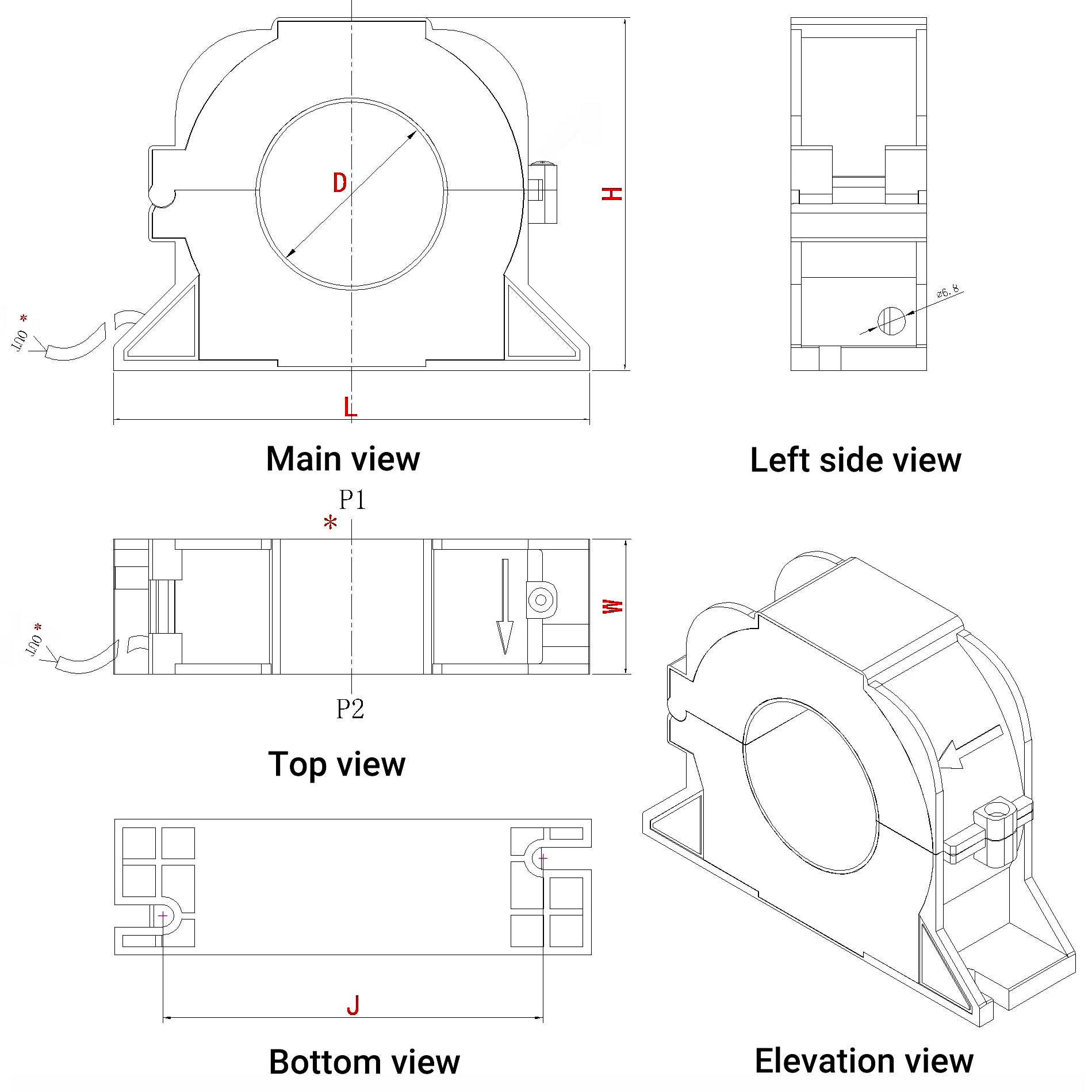

Shape and Installation Dimensions
Product
Model NO.
Rated
Input
Rated
Output
Precision
Class
Dimensions(mm)
D L W H J K
BNWAK-30B 0~1A 0~1A
(0.5mA)
0.5
1.0
30 88 30 68 76 M5
BNWAK-45B 45 116 33 86 92 M5
BNWAK-65B 65 130 33 105 110 M6
BNWAK-80B 80 160 33 128 143 M6
BNWAK-100B 100 188 33 154 178 M6
BNWAK-150B 150 238 33 204 228 M6
Product Model NO. Naming Rules
Installation Precautions

The live wire and the neutral wire must pass through the core hole of the transformer at the same time;

Before the iron core is closed, ensure that the end face of the incision is clean, free of stains and impurities;

Use a torque wrench (electric/pneumatic) when tightening the screws, and set the torque to a reasonable range.
