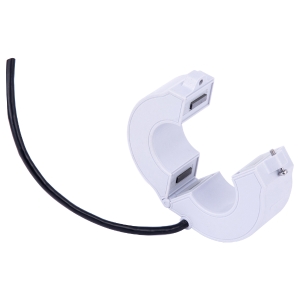

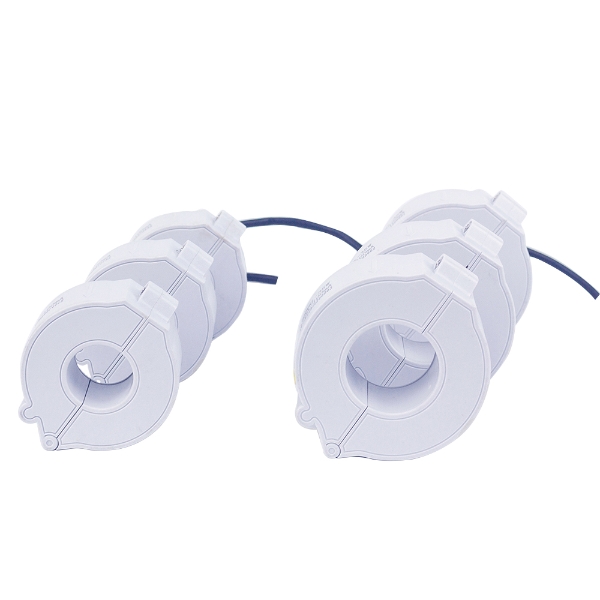

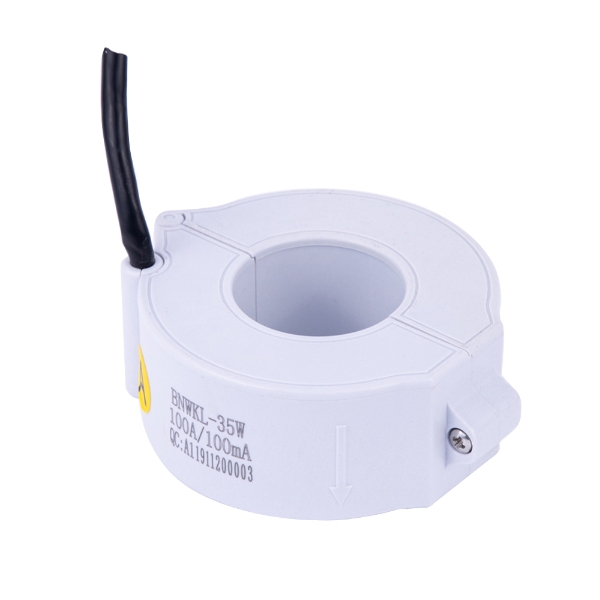

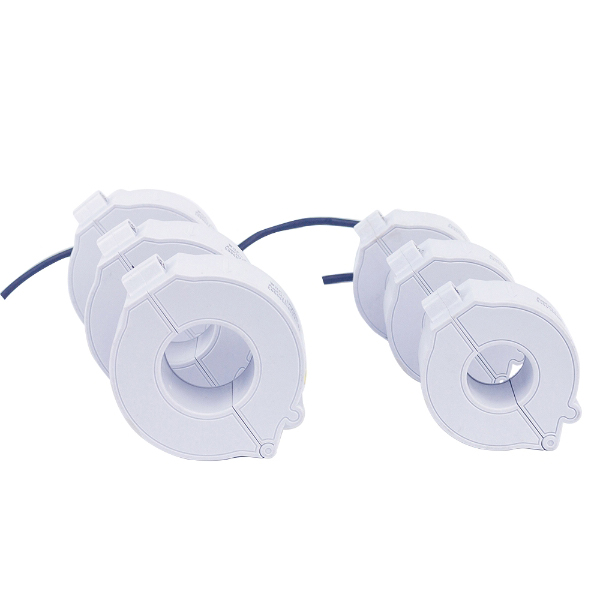

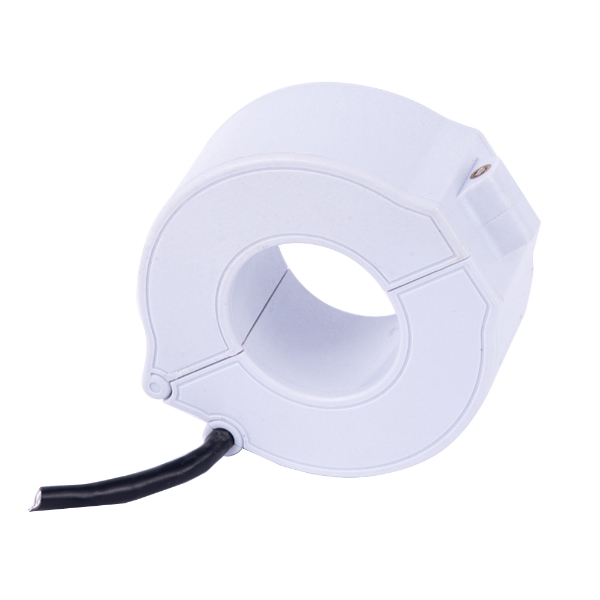

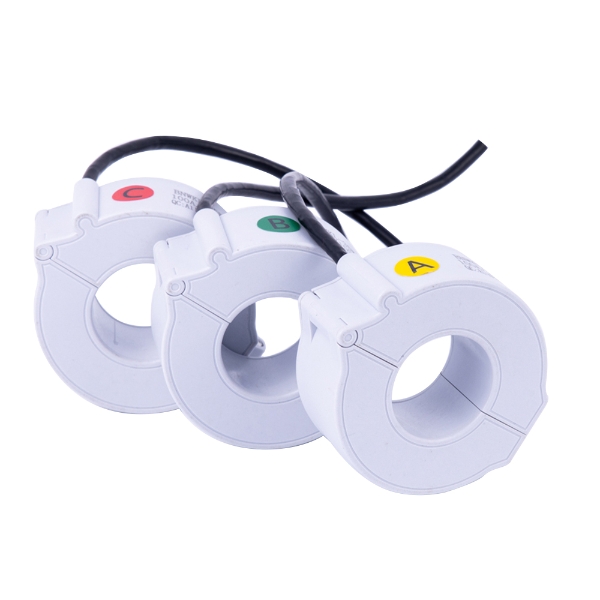

Open and close structure ,easy to install on site and easy to operate .Quick and easy installation or removal without disconnecting the primary cable under test ,effective for safe and easy current testing.
Wide quantity limit and strong anti-saturation ability .Input current range 0~600A
Flame retardant properties ：According to UL94-V0；
Protection class：IP66
|
Electrical performance parameters |
Operation temperature | -40℃～+70℃ | Relative humidity | ≤90% |
|---|---|---|---|---|
| Voltage level | 0.4/0.66/0.72KV | Linear range | 5%～120% | |
| Rated input current | 0～600A | Rated frequency | 50/60Hz | |
| Rated load | ＜20Ω | Power frequency withstand voltage | 3KV/min | |
| Accuracy class | 0.5级 | Dielectric strength | 1000MΩ/500V/min | |
|
Mechanical structure parameters |
Shell and skeleton | PA/PCFlammability rating94-V0 | Output method | Waterproof aerial plug /sheath cable |
| Core material | Silicon steel /nanocrystalline /permalloy | sealing | Epoxy resin | |
| Internal structure | Waterproof silicon seal | Protection class | IP65、IP66、IP67 |
| Product model |
rated input |
rated output |
accuracy class |

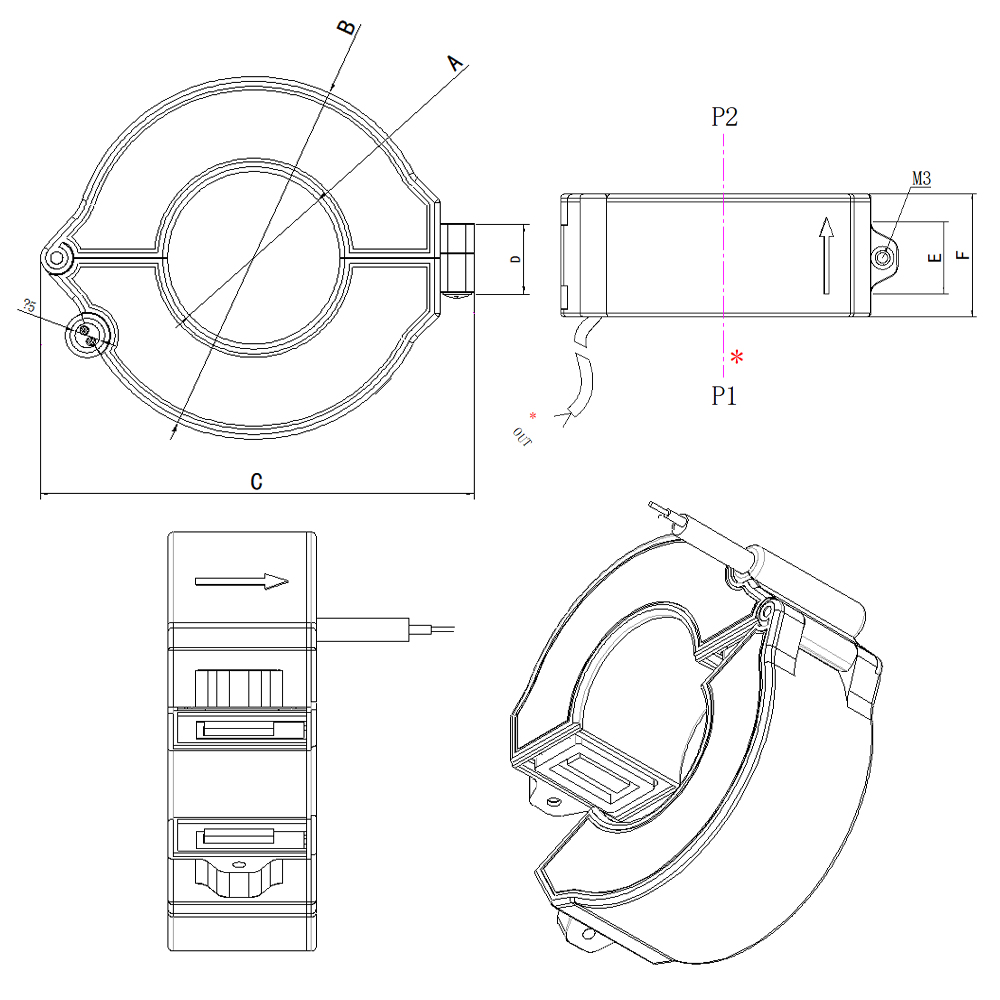

Dimensions(mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| BNWAKL-25W | 0～300A | 0～100mA | 0.3 0.5 0.5S |
25 | 60 | 75 | 14.5 | 19 | 30.5 |
| BNWSKL-25W | |||||||||
| BNWPKL-25W | |||||||||
| BNWAKL-35W | 0～600A | 35 | 73.5 | 88 | 14.5 | 19 | 32 | ||
| BNWSKL-35W | |||||||||
| BNWPKL-35W | |||||||||
Before the silicon steel core is closed ,ensure that the end face of the incision is clean ,free of stains and impurities; It must be treated with anti-rust agent;
Use a torgue wrench (electric /pneumatic ) when tightening the screws and set the torque to a reasonable range .
