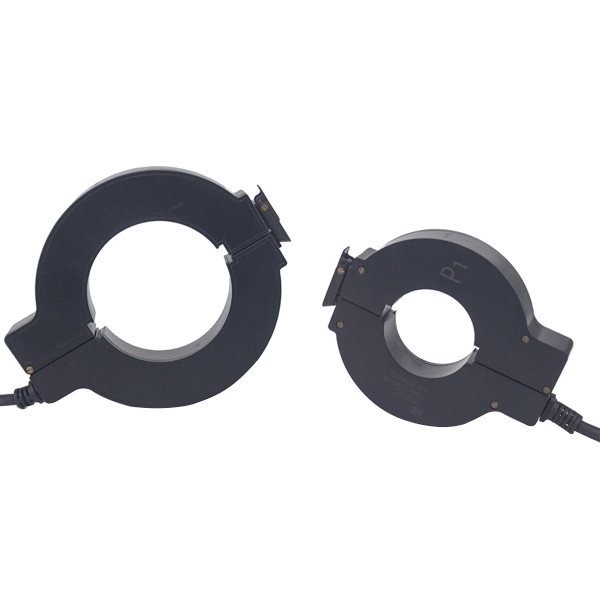

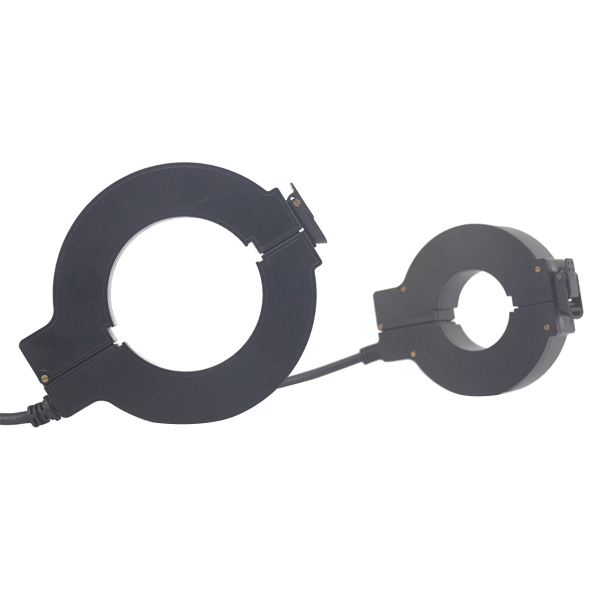

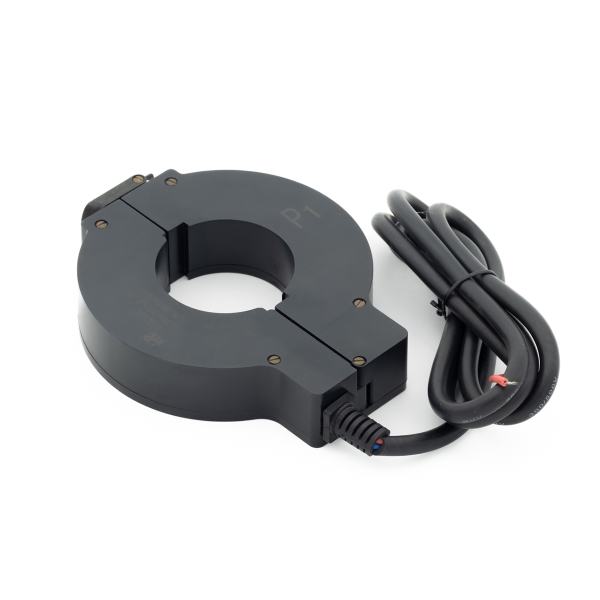

Open and close structure ,easy to install on site and easy to operate. Quick and easy installation or removal without disconnecting the primary cable under test, effective for safe and easy current testing ;
Wide quantity limit and strong anti-saturation ability .Input current range 0-1500A.
The buckle structure is fixed and stability is good;
Adopt high magnetic ，good linearity and high sensitivity.
|
Electrical performance parameters |
Operation temperature | -40℃～+70℃ | Relative humidity | ≤90% |
|---|---|---|---|---|
| Voltage level | 0.4/0.66/0.72KV | Linear range | 5%～120% | |
| Rated input current | 0～1500A | Rated frequency | 50/60Hz | |
| Rated capacity | 0.5VA、1VA | Power frequency withstand voltage | 3KV/min | |
| Accuracy class | 0.5、1.0 | Dielectric strength | 1000MΩ/500V/min | |
|
Mechanical structure parameters |

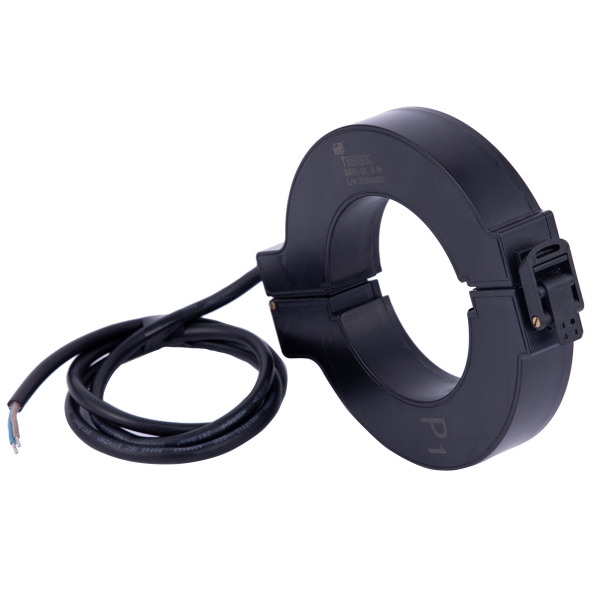

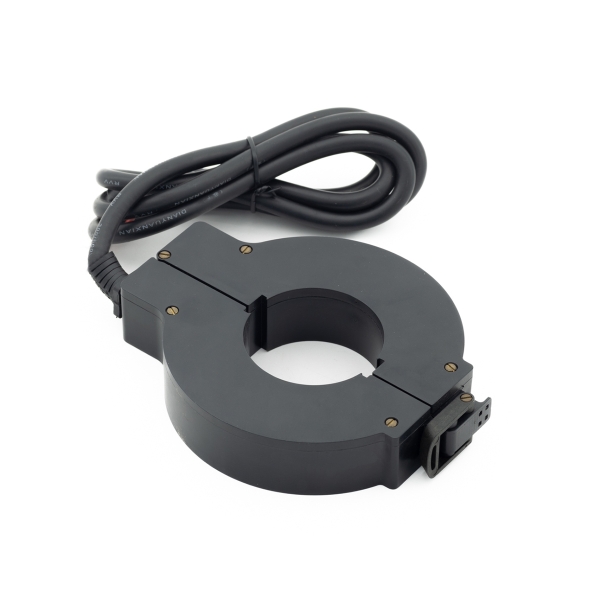

Shell | PA/PCFlammability rating94-V0 | Output method | Silicone rubber sheathed wire |
| Winding bobbin | PBT | Opening and closing structure | snap | |
| Core material | Silicon steel /Nanocrystalline /glass film alloy | construction plan | Copper screw fixing cable |

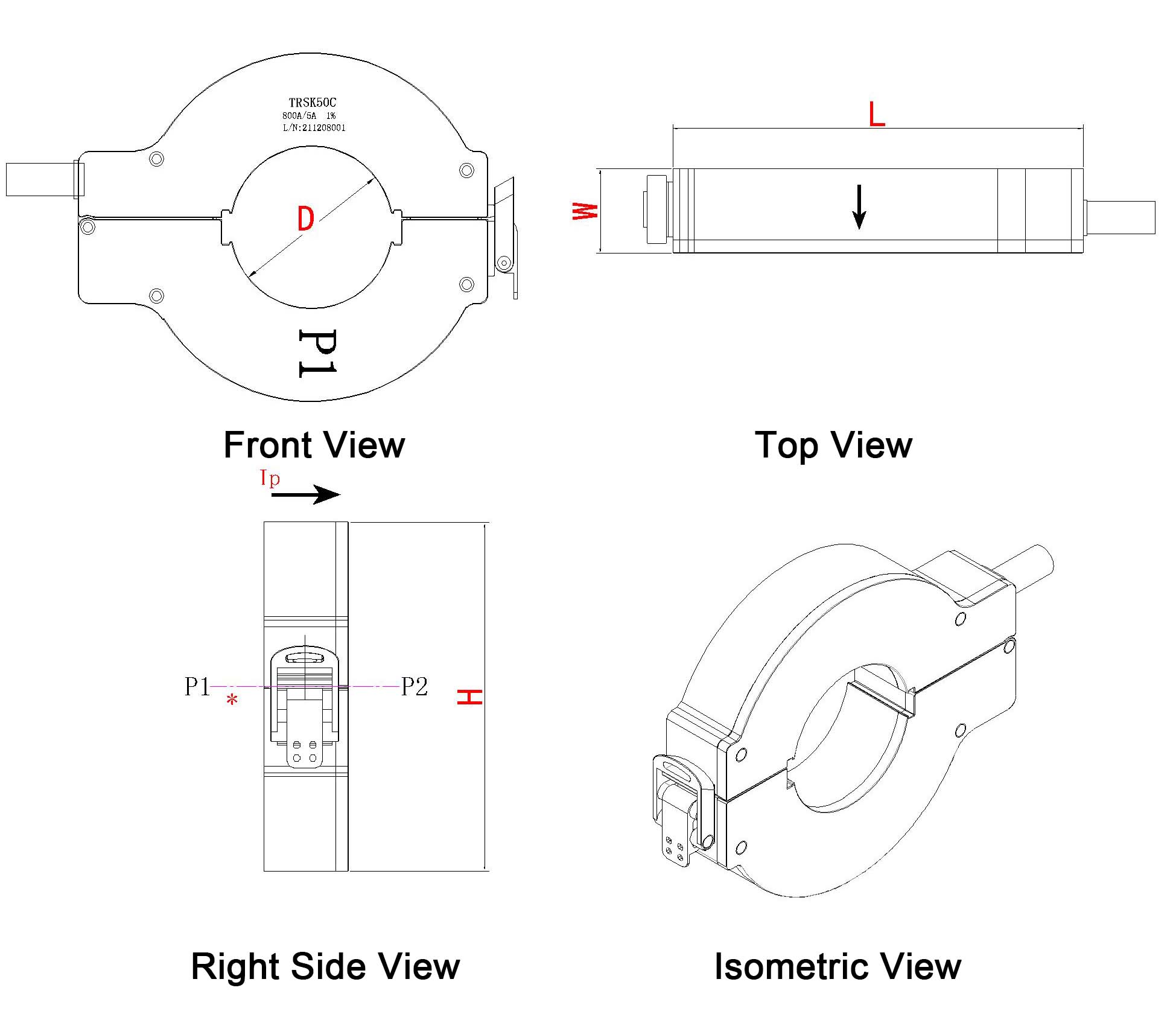

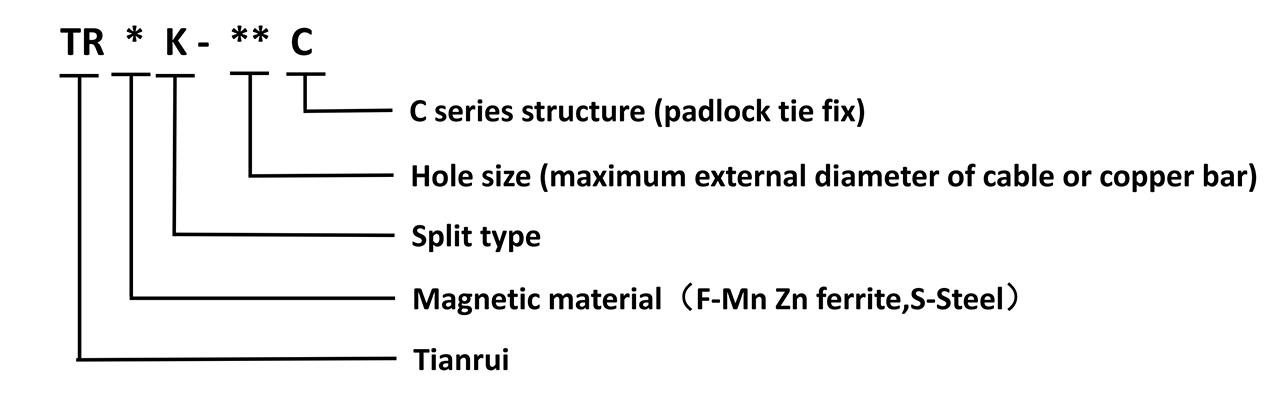

| Product model rated | rated input | rated output | accuracy class | Dimensions(mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| D | L | W | H | ||||||
| TRSK-50C | 0～800A | 0～1A （0～1.0V） | 0.5 1.0 |
50 | 23.5 | 26.5 | 44 | ||
| TRSK-80C | 0～1500A | 0～5A （0～2.5V) | 80 | 31.5 | 32.5 | 51 | |||
Before the silicon steel core is closed ,ensure that the end face of the incision is clean ,free of stains and impurities;It must be treated with anti-rust agent;

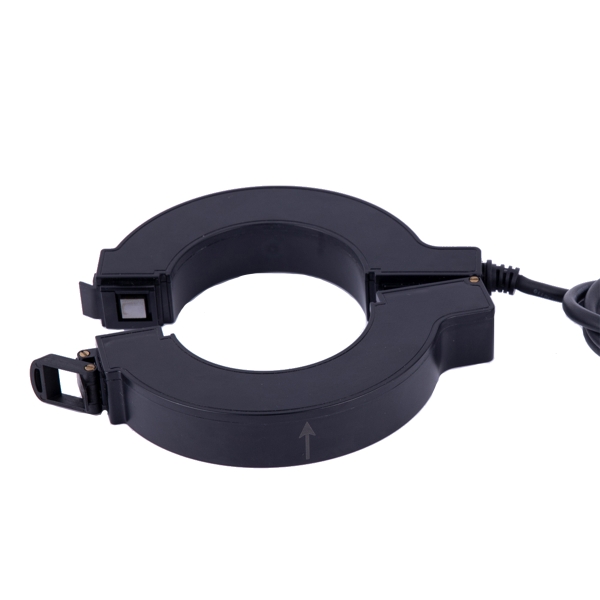

It is recommended to use a special pry bar/pry tool to open it. Do not break the buckle with excessive force.
