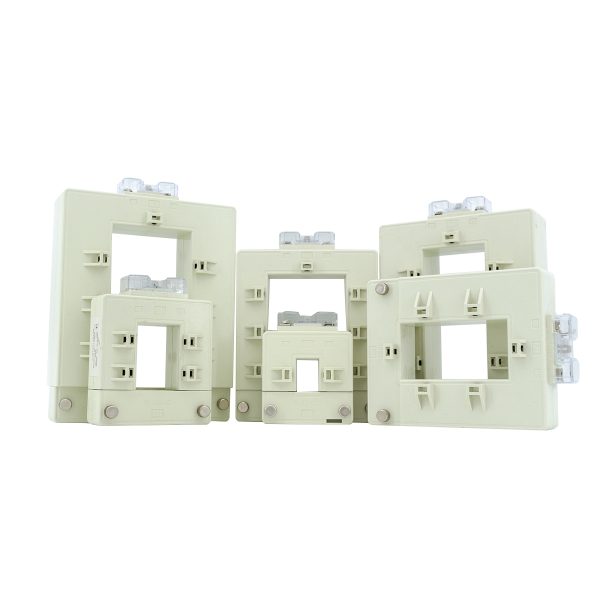

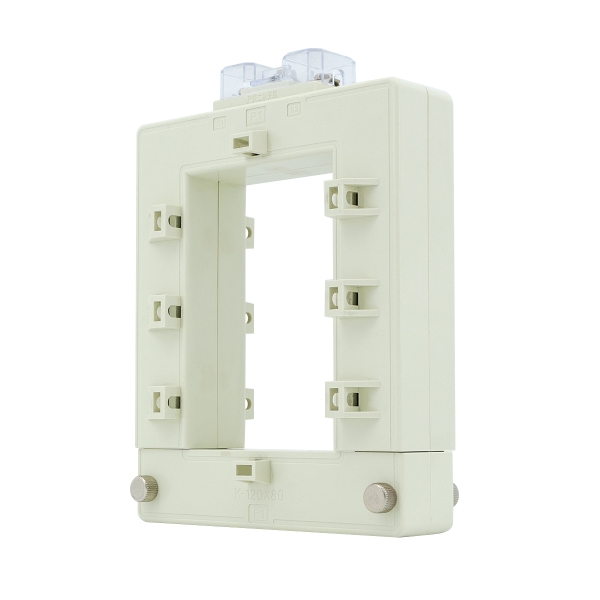

TRDP Series Busbar Type Separated Current Transformer
TRDP Series Busbar Type Separated Current Transformer TRDP Series Busbar Type Separated Current Transformer TRDP Series Busbar Type Separated Current Transformer TRDP Series Busbar Type Separated Current Transformer TRDP Series Busbar Type Separated Current Transformer

TRDP Series Busbar Type Separated Current Transformer

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product description

It is mainly used for measurement and protection of electrical equipment in 0.66KV AC power system. It can also be used in conjunction with relay protection ,measurement and metering devices and is widely used in urban and rural power grid reconstruction .This type of transformer is easy to install ,does not need to remove the wire once and can also be operated with electricity which does not affect the normal installation and use of customers.
Product Specification Chart

Features

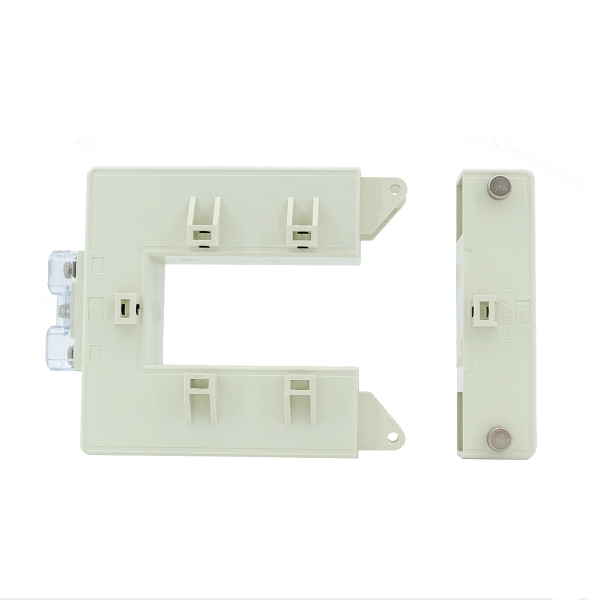

Separate structure ,easy to install and easy to operate .

The iron core can be divided ,the precision is high and the magnetic circuit is small.

For current measurement ,monitoring and protection of lines and equipment.

Internal windows are large and can pass through clamps, cables or busbars.

Performance

Parameters Symbol Indicator
Rated input current I n 100A~5000A
Rated output current I o 1A,5A
Rated load R L 1VA~30VA
Accuracy class ρ 0.5,1.0 ,1.5 class
Short-term thermal current 20×In
Withstand voltage V d 3000Vac/min
Dielectric strength 1000MΩ/500Vac
Operation temperature Ta -25℃ ~ +75℃
Environment humidity ≤85%
Operation frequency f 50~60Hz
Dimensions

Product size Dimensions Perforation size
W H D a e

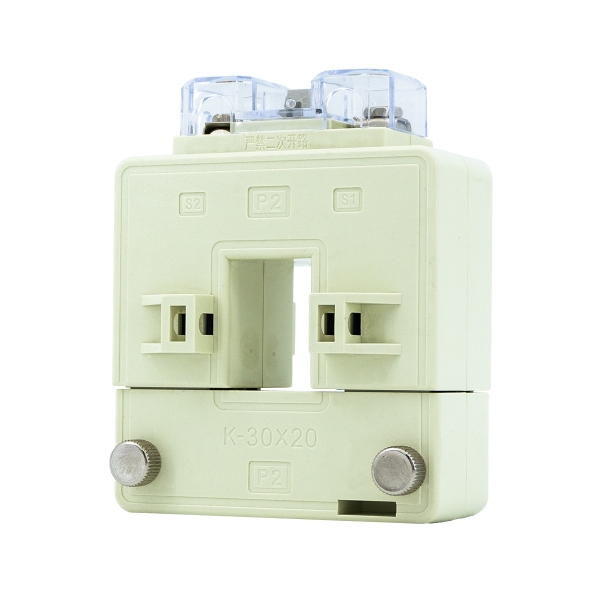

TRDP-30*20 90 114 40 22 32

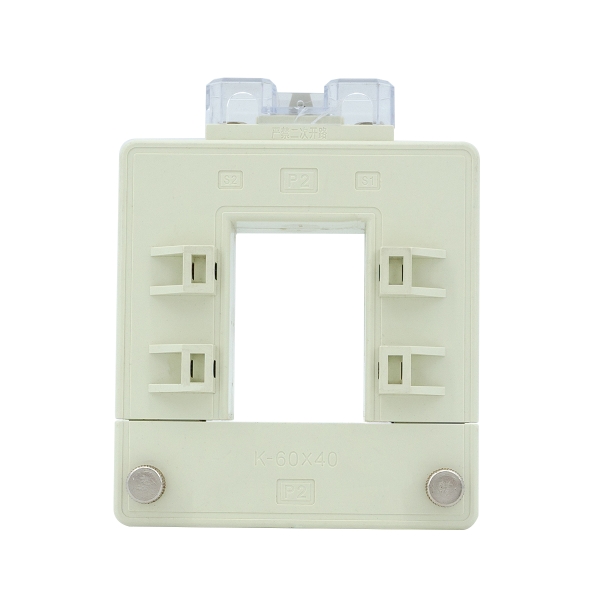

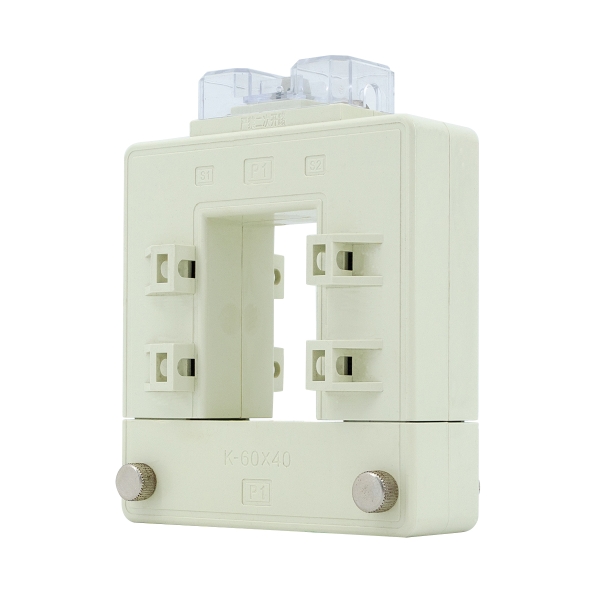

TRDP-60*40 114 140 36 42 62
TRDP-80*50 122 160 40 52 82
TRDP-80*80 144 160 36 82 82
TRDP-100*50 144 190 48 52 102
TRDP-120*80 152 200 40 82 122
TRDP-140*60 164 234 52 62 142
TRDP-160*80 184 254 52 82 162
Main specifications

Type specification rated load(VA)
0.5 clss 1.0 class 1.5 class
 TRDP-30*20 100A/5A - - 1.5
150A/5A - - 2
200A/5A - 1.5 2.5
250A/5A - 1.5 3.75
300A/5A 1.5 3.75 5
400A/5A 2.5 5 10
 TRDP-60*40 200A/5A - 1.5 2.5
300A/5A 1.5 2.5 2
400A/5A 1.5 2.5 2
500A/5A 2.5 5 15
600A/5A 2.5 5 17.5
750A/5A 2.5 5 18
800A/5A 2.5 7.5 18
1000A/5A 5 10 20
TRDP-80*50 250A/5A 1 1.5 3.75
300A/5A 1.5 2.5 5
400A/5A 1.5 2.5 5
500A/5A 2.5 5 15
600A/5A 2.5 5 17.5
750A/5A 2.5 5 18
800A/5A 2.5 7.5 18
1000A/5A 5 10 20
TRDP-80*80 250A/5A 1 2 4
300A/5A 1.5 2.5 5
400A/5A 1.5 2.5 5
500A/5A 2.5 5 15
600A/5A 2.5 5 17.5
750A/5A 2.5 5 18
800A/5A 2.5 7.5 18
1000A/5A 5 10 20
Type Specification Rated load(VA)
0.5 class 1.0 class 1.5 class
TRDP-100*50 500A/5A 2.5 5 15
600A/5A 2.5 5 17.5
750A/5A 2.5 5 18
800A/5A 2.5 7.5 18
1000A/5A 5 10 20
1200A/5A 5 12.5 24
1250A/5A 7.5 15 28
1500A/5A 7.5 17 30
 TRDP-120*80 500A/5A - 4 12.5
600A/5A - 5 15
750A/5A 2.5 6 17.5
800A/5A 2.5 7.5 18
1000A/5A 5 10 20
1200A/5A 5 12.5 24
1250A/5A 7.5 15 28
1500A/5A 7.5 17 30
TRDP-140*60 1000A/5A 10 15 20
1500A/5A 15 20 25
2000A/5A 15 20 25
2500A/5A 15 20 25
3000A/5A 20 25 30
4000A/5A 20 25 30
5000A/5A 20 25 30
TRDP-160*80 1000A/5A 10 15 20
1500A/5A 15 20 25
2000A/5A 15 20 25
2500A/5A 15 20 25
3000A/5A 20 25 30
4000A/5A 20 25 30
5000A/5A 20 25 30
Installation diagram


Installation precautions


Before installing the open current transformer,it must be connected to the electric meter (or other measuring device) twice to ensure that the secondary transformer is not open;

Place all open current transformers connected with secondary wires on site and wait for installation;

If the primary busbar on site is a cable ,lie installation can be performed; If the primary busbar is a copper bar, the live operation requires a relatively high level of proficiency for the operator and the requires good insulation protection measures;

When installing the transformer ,foreign objects such as impurities and dust should not fall into the cut surface of the iron core ,so as not to affect the performance of the transformer.
