This product is used for signal isolation and acquisition of low-voltage relay protection ; The current signal during short-circuit fault of the system is converted into a signal suitable for weak current circuit through the transformer, and the accurately transmitted to the electronic circuit based on microprocessor ;
The product uses a special composite magnetic core with high permeability and small residual magnetism ,which can effectively prevent the first wave distortion caused by the “excitation inrush current” generated during the opening and closing test .
PCB mounting method ,directly soldered on the circuit board;
High permeability ,small magnetic leakage and excellent consistency ;
Strong overload capacity ,can withstand 20-40 times the rated current instantaneous impact without saturation ;
30% DC component waveform can be superimposed without distortion;
Various shape structures are available .
| Electrical performance parameters |
Operation temperature | -25℃～+55℃/-40℃~～+85℃可选 | Relative humidity | ≤90%hPa |
|---|---|---|---|---|
| Internal insulation | Epoxy resin | Insulation resistance | ＞500 M Ohms/500Vdc | |
| Medium strength | 3000Vac/min | Withstand impulse voltage | 5000V（1.2/50μsStandard Lightning Wave） | |
| Rated load | ＞50K Ohms | Operation frequency | 50～400Hz | |
| Accuracy class | According to（IEC 61869-2）or
（GB 20840.2-2014） Definition of the error limit of the current transformer for medium protection; |
Environmental friendly | According to the requirement of RoHS; |
| Physical Pic | Type | Rated input current (AC) |
Rated accuracy limits nput current /output voltage (AC) |
Error limit | Power consumption（VA) | Power frequency withstand voltage（V） | Dimensions（mm） |
|---|---|---|---|---|---|---|---|
 |
TR0102-2BA | 1A,5A | 20A/3.53V,7.07V 50A/3.53V,7.07V 100A/3.53V,7.07V |
5%～200%Within the rated current input range：0.2，0.5 class; 2～20/40imes the rated current input range ，1.0 class； Compound error at primary current at rated accuracy limits ≤5% |
≤0.5 | ≥3000 |

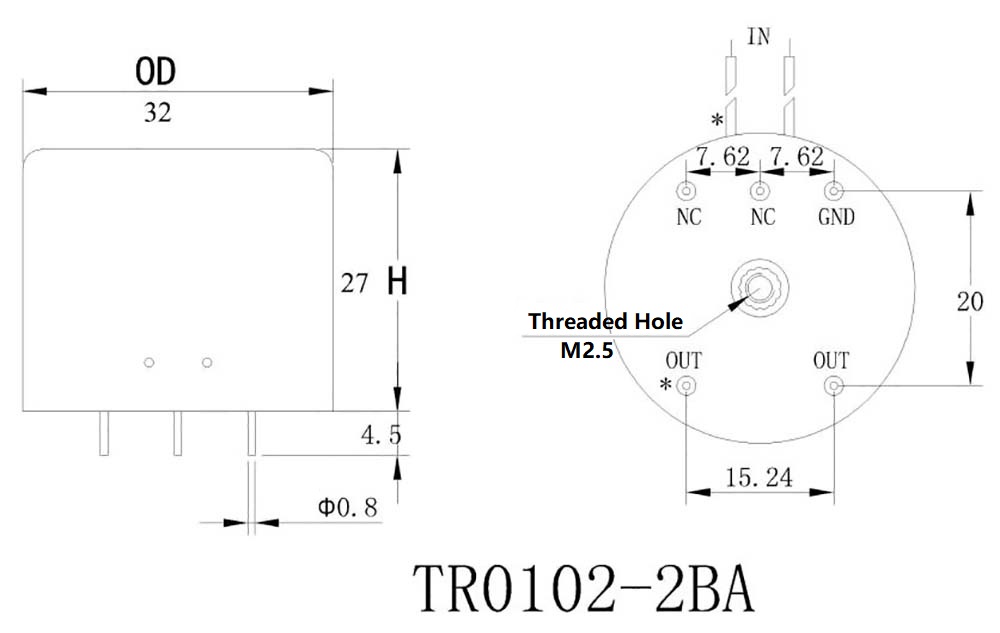

 OD-H 32-27 |
 |
TR0176-4BA | 1A,5A | 20A/3.53V,7.07V 50A/3.53V,7.07V 100A/3.53V,7.07V |
≤0.5 | ≥3000 |
 L-W-H 30-23-33 |
|
 |
TR0175-4BA | 1A,5A | 20A/3.53V 50A/3.53V 100A/3.53V |
≤0.5 | ≥3000 |
 L-W-H 31-24-31.5 |
|
 |
TR01116-2BA | 1A,5A | 20A/3.53V,7.07V 100A/3.53V,7.07V 200A/3.53V,7.07V |
≤0.5 | ≥3000 |
 OD-H 34-30 |
|
 |
TR0134-6BZ | 1A,5A | 30A/3.53V,7.07V 150A/3.53V,7.07V 200A/3.53V,7.07V |
≤0.5 | ≥3000 |
 L-W-H 35-32-28.5 |
Remarks：Customization available according to system requirements .
