Product description
This products is used for transmission ,isolation and insulation of voltage signals .The high-level AC voltage signal is converted into a low-level AC voltage signal through the transformer ,and accurately transmitted to the electronic circuit based on microprocessor ,which is suitable for signal acquisition of replay protection voltage products .
Main characteristics

Good linearity and excellent consistency

Good transient characteristics and wide working range

The voltage is directly input and the secondary side directly outputs the voltage;

The circuit is simple ,no external power supply is required and the operation is reliable ;

A variety of form factors are available ,with optional PCB mounting and insert fixing methods;

Application
Apply to system protection and transient analysis of relay protection and automation equipment in power system and high voltage level .
Product parameters
Electrical
performance
parameters
Operation temperature -25℃~+55℃/-40℃~~+85℃可选 Relative humidity ≤90%hPa
Internal insulation Epoxy resin Insulation resistance >500 M Ohms/500Vdc
Medium strength 3000Vac/min Withstand impulse voltage 5000V(1.2/50μsStandard Lightning Wave)
Operation frequency 50~400Hz Rated load >5K Ohms
Environmental friendly According to the requirement of RoHS Accuracy class According to(IEC 61869-3)or
(GB 20840.3-2013)accuracy 0.2,0.5 class
Model interpretation
Typical value of products

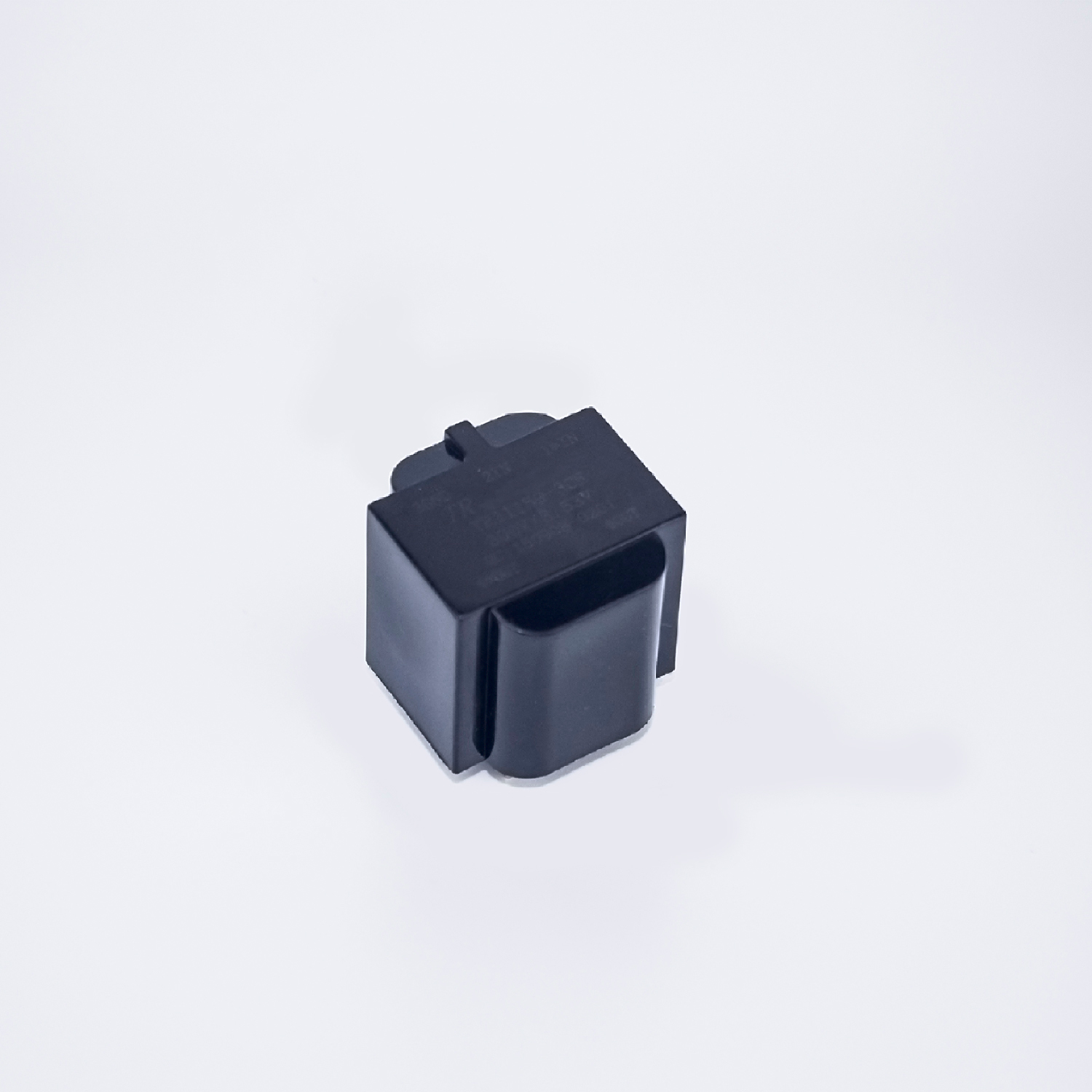

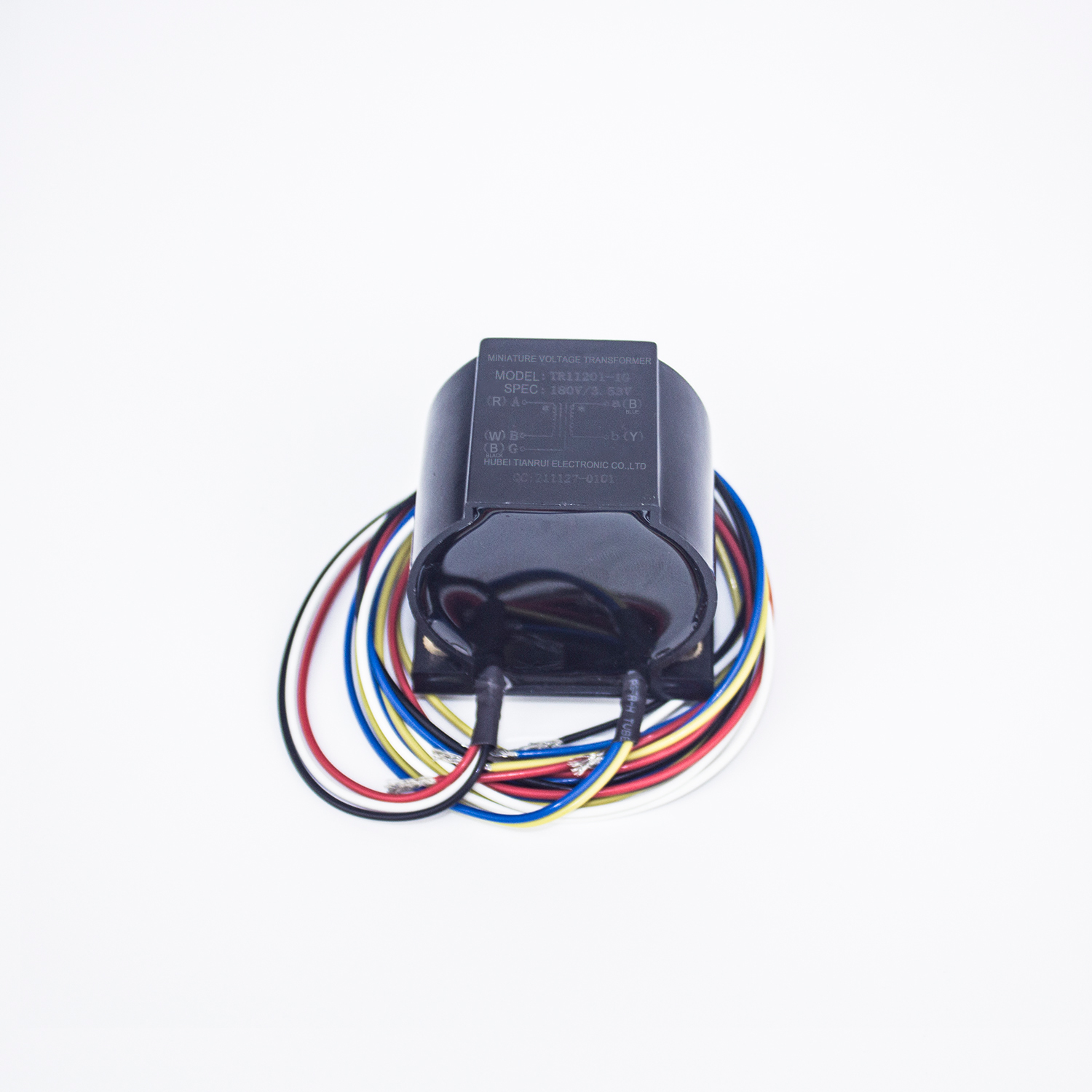

Physical Pic Type Rated input voltage
(AC)
Rated output voltage(AC) Accuracy class No-load current (mA) Power frequency withstand voltage(V) Dimensions(mm)
TR11159-2CE 57.5V,100V,120V,
150V,200V,300V,
380V,
0.353V,2.5V,
3.53V,4V,7.07V
0.2,0.5 ≤0.5 ≥3000 查看外形结构图
L-W-H
29-30-28.5
TR11284-4CE 57.5V,100V,200V,
380V,450V
0.353V,3.53V,
4V,7.07V
0.2,0.5 ≤0.5 ≥3000 查看外形结构图
L-W-H
35-33-32

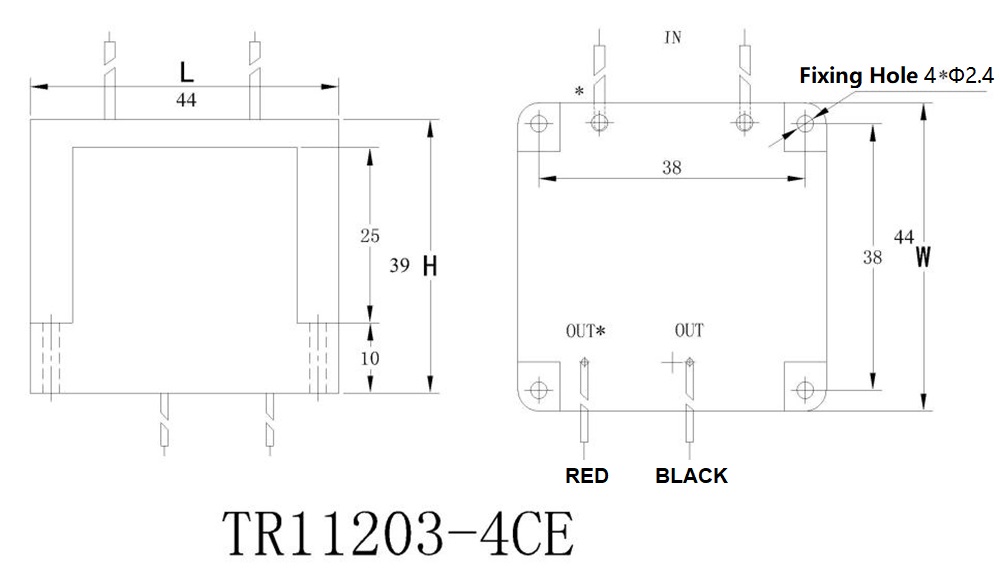

TR11203-4CE 57.5V,100V,120V,
200V
0.353V,3.53V,
4V,7.07V
0.2,0.5 ≤0.5 ≥3000 查看外形结构图
L-W-H
44-44-39

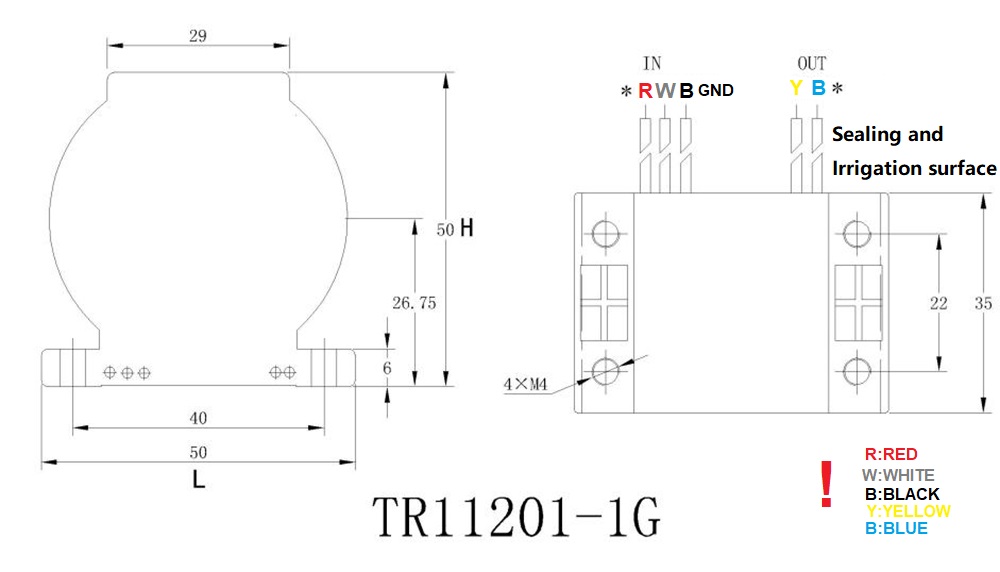

TR11201-1G 57.5V,100V,120V,
150V,200V,300V,
380V,
0.353V,2.5V,
3.53V,4V,7.07V
0.2,0.5 ≤0.5 ≥3000 查看外形结构图
L-W-H
50-35-50

Remarks:Customization available according to system requirements .

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
