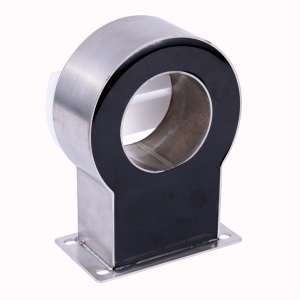

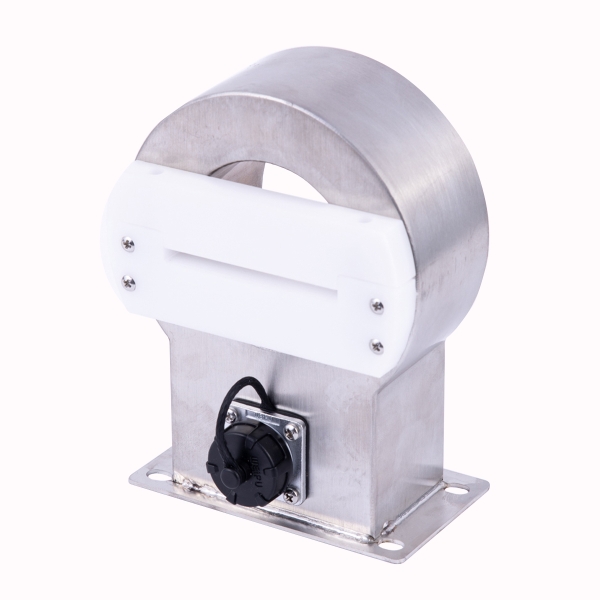

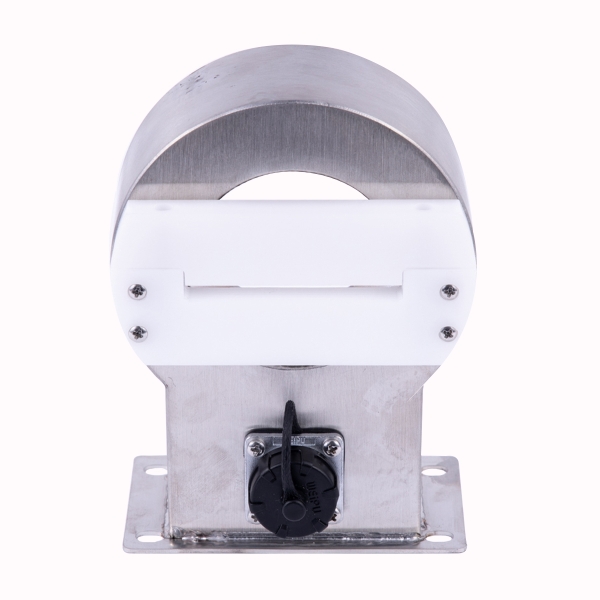

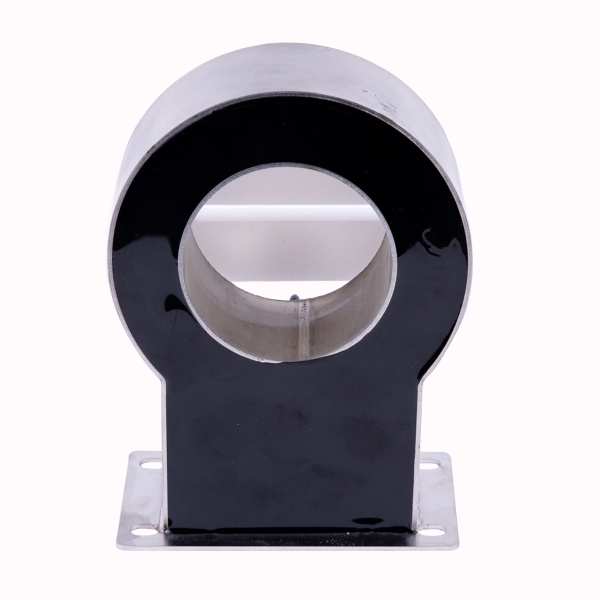

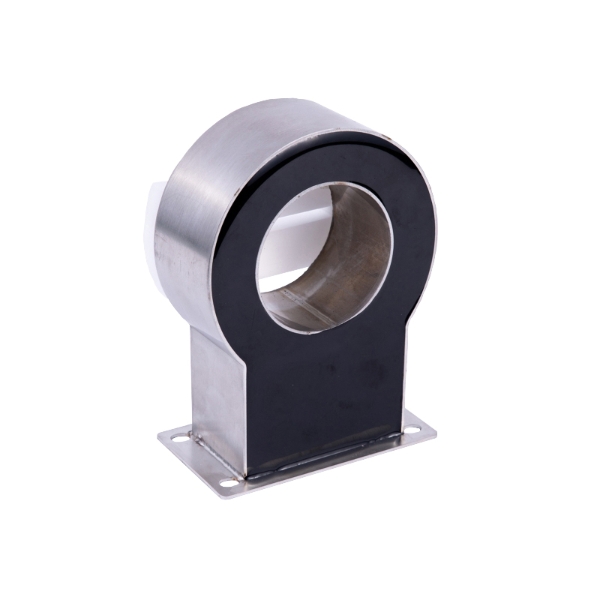

Transformer Core Ground Sensor(Closed Loop Cross-core Type)
Transformer Core Ground Sensor(Closed Loop Cross-core Type) Transformer Core Ground Sensor(Closed Loop Cross-core Type) Transformer Core Ground Sensor(Closed Loop Cross-core Type) Transformer Core Ground Sensor(Closed Loop Cross-core Type)

Transformer Core Ground Sensor(Closed Loop Cross-core Type)

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry

Transformer is the key equipment in the power system, and its normal operation is an important guarantee for the safe, reliable, stable and economical operation of the power system. When the power transformer is running, there is an alternating magnetic field around the winding. Due to the effect of electromagnetic induction, there are parasitic capacitances between the high-voltage winding and the low-voltage winding, between the low-voltage winding and the iron core, and between the iron core and the shell, and the live winding will pass the parasitic capacitance. The coupling effect of the capacitors causes the iron core to generate a floating potential to the ground. Because the distance between the iron core and other metal components and the windings is not equal, there is a potential difference between the components.So that there is a potential difference between the components, when the potential difference between two points can break down the insulation, it will produce spark intermittent discharge, which will have an adverse effects on the transformer oil and solid insulation, Therefore, it is necessary to connect the iron core to the shell to make it equipotential with the shell. If the iron core or other metal components are grounded at two or more points, the grounding point will form a closed loop, resulting in a circulating current, which will cause local overheating of the transformer body, resulting in oil decomposition, and then lead to a decrease in insulation performance. In serious cases, the iron core silicon steel sheet will be burned out, resulting in a major accident of the main transformer, so the main transformer core must be grounded. Otherwise, the iron core will generate a floating voltage to the ground or the iron core will be grounded at multiple points, resulting in a heating fault, which seriously threatens the safety of the transformer and the power grid. By monitoring the grounding current of the iron core, faults such as multi-point grounding of the iron core can be found in time, preventing problems before they occur, and eliminating the faults in the bud.

BNWXL-60W transformer core grounding sensor is a special supporting client "transformer core and clip grounding current monitoring device", which is used to monitor the ground fault current of transformer core and clips, and can realize continuous and online monitoring of core grounding current. Through monitoring, the insulation status of the equipment can be monitored in real time, and faults such as damp or damaged internal insulation, multi-point grounding of the iron core, foreign objects in the box, and sludge deposition in the fuel tank can be found in time. More importantly, it can provide reliable data basis for the condition maintenance of such equipment.

The material with high initial permeability is selected as the iron core, and the unique deep negative feedback technology and multi-layer metal shielding measures are adopted, which can automatically compensate the iron core and make the iron core work in an ideal zero magnetic flux state. The sensor can accurately detect the power frequency current of 100μA-700mA. The phase transformation error is not greater than 0.01°, and it has good temperature characteristics and electromagnetic field interference ability, which fully meets the accuracy of equipment sampling under complex power station field interference.

Product Features

Through-core fastening copper bar structure, suitable for busbars with a diameter of φ60 or 55mm×10mm copper bars;

It can accurately measure μA-level current, with high measurement accuracy and good linearity;

Multiple shielding, strong anti-interference ability, can work in complex environment;

Optional shielded wire or aviation plug output;

Special waterproof and anti-corrosion metal shell, epoxy resin potting, can work outdoors for a long time.

Scope of Application
On-line monitoring of transformer core grounding; on-line monitoring of high-voltage bushing insulation; on-line monitoring of zinc oxide arrester insulation; on-line monitoring of current, voltage transformers and capacitors; high-voltage live display.
Electrical Symbol Performance Opened and closed lock
I P Measurable Range 0.1mA~1A
V OUT Rated Output 0~7Vrms
X Accuracy @I PN 0.05%
ε L Linearity ≤0.05%
Uc Supply Voltage ±12V
V Off Offset Voltage 1mV
I C Maximum Power Consumption 10mA
f Working Frequency 50-400 Hz
T A Operating Temperature -40oC… +85℃
T S Storage Temperature -40oC…+100℃
Shell Metal Shell Output Mode Shielded wire/waterproof navigation plug
Core Material Nanocrystalline/Permalloy Seal Flexible Silicone & Epoxy
Magnetic Screen Structure Carbon Steel/Permalloy Construction Plan Base Installation Fixed

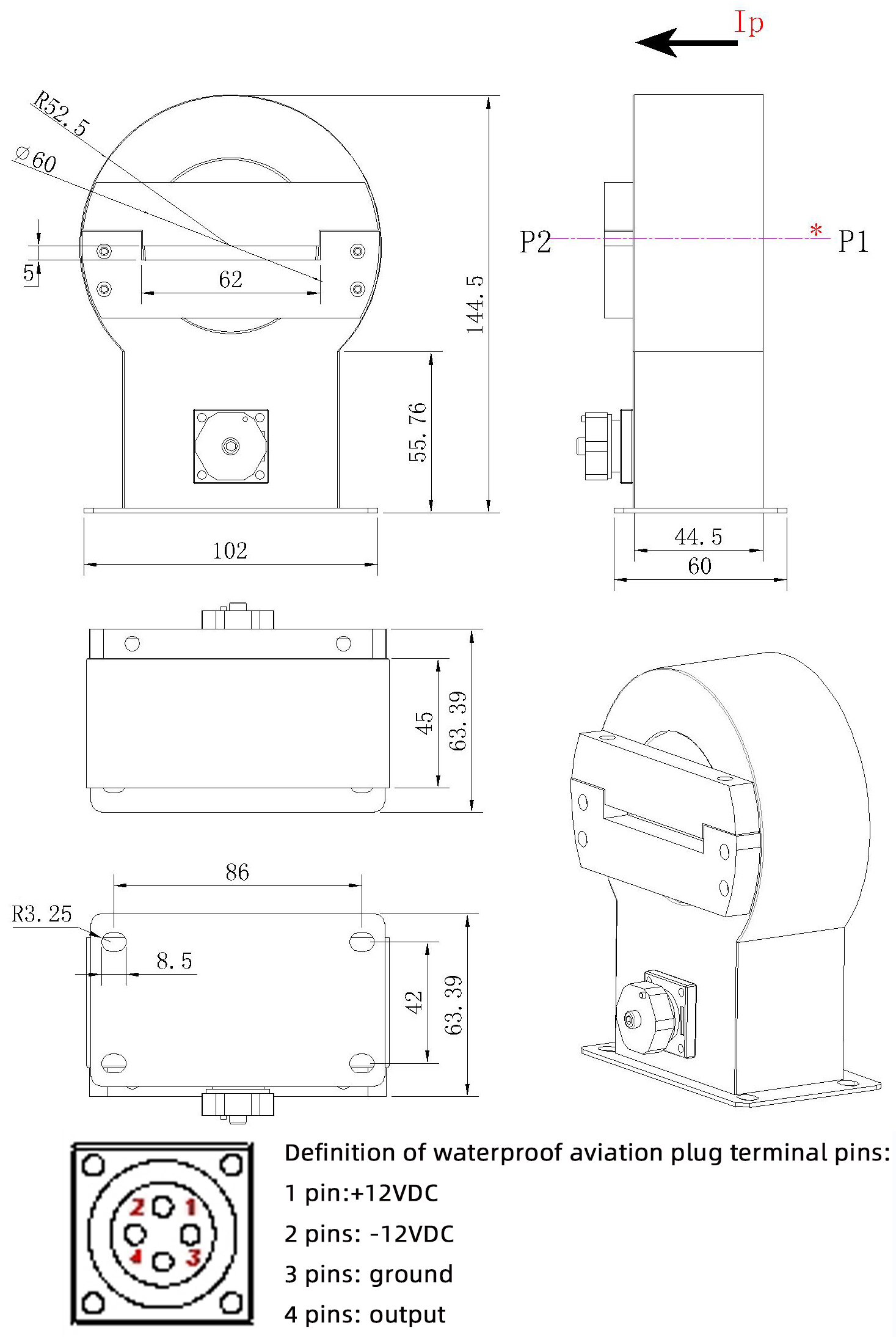

Shape and Installation Dimensions
Shape and Installation Dimensions Shape and Installation Dimensions
